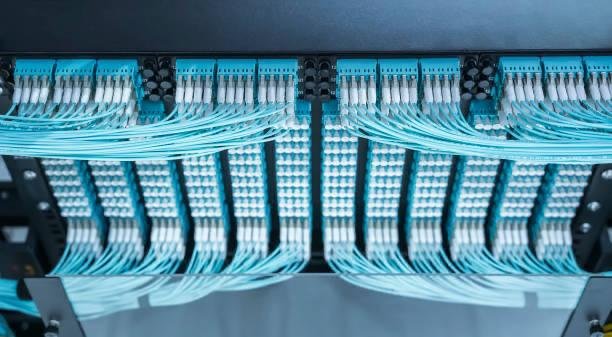

Cat6 Cabling Installation Saudi Arabia
In today’s fast-paced world of digital business, companies need modern network infrastructure. Relying on outdated systems just won’t work anymore. Cloud-native platforms and large data pipelines are essential for success. Local area networks (LANs) used to handle basic web browsing and email just fine. They now have trouble with high-definition video calls. Real-time server replication is also a challenge. Automated Building Management Systems (BMS) and heavy AI data processing are difficult for them, too. Smart companies want a strong, fast digital setup. In Saudi Arabia, a certified Cat6 cabling installation is now essential. It’s not just a luxury anymore.
Many IT teams face sudden network dropouts, high packet collisions, or annoying hardware delays. They often think the problem is with their edge switches, optical transceivers, or core routers. But, when you troubleshoot, you often find the main problem is bad copper cabling. It might be outdated or not installed well. Older Category 5e unshielded links can’t manage high frequency bands well. They suffer from signal loss.
Working with a specialized developer, like Shan Network Company related like cat6 cabling installation in saudi arabia, ensures your office, hotel, or industrial site has certified low-voltage systems.
This means your systems will meet safety standards. You can trust their expertise for reliable installation.
You can trust their expertise for your needs. These systems protect your business and let your hardware grow smoothly for years.
Technical Specifications and Architecture of Category 6 cabling Installation
Category 6 (Cat6) infrastructure is a trusted standard for twisted-pair copper. It’s designed to meet the high-speed needs of today’s commercial spaces. Procurement leaders must understand the basic physics and material design of this standard. They need this knowledge to make smart long-term investment choices.
Substantial Operating Frequency and Bandwidth Performance
Standard Category 5e cabling is engineered to operate at a maximum signaling frequency of 100 MHz. In contrast, standard Cat6 infrastructure operates at a high frequency spectrum level of 250 MHz. The cable more than doubles the available bandwidth. This lets data packets travel at the same time, so there’s no waiting. As a result, it cuts down on transmission delays. This high frequency capacity lets copper carry dense data streams smoothly. It avoids serious signal loss.
True Gigabit Performance and Mid-Range 10GbE Capabilities
Cat6 copper has a key advantage over older types. It supports full Gigabit Ethernet speeds of 1 Gbps over a 100-meter (328 feet) channel. Also, in quiet, optimized settings, standard Cat6 cables can handle 10-Gigabit Ethernet (10GbE) speeds. This works well over short distances, typically from 37 to 55 meters. These features help corporate networks set up fast uplinks for busy server racks or important departments. Businesses can use this performance. It helps them delay costly upgrades to expensive infrastructure.
Enhanced Internal Spline Construction and Crosstalk Defenses
To successfully transmit data at 250 MHz, Cat6 utilizes an advanced structural design. The cable incorporates a specialized internal longitudinal separator, commonly known as a spline. This plastic cross separator keeps each of the four copper twisted pairs apart along the cable’s length. This barrier cuts down on Near-End Crosstalk (NEXT) and lowers internal signal distortion. This means cleaner signals for all horizontal workstations.
Why Makkah Commercial Spaces Demand Industrial-Grade Low-Voltage Infrastructure
Deploying low-voltage networks in places like Makkah needs local know-how. Local experts are essential for success. Local expertise is essential for success. It’s important to understand the area well. Environmental stressors, heavy foot traffic, and unique buildings create tough challenges. Regular networking products can’t handle these issues.
High Ambient Electromagnetic Fields from Intense Power Grids
The commercial scene in Makkah includes large hotels, tall buildings, and advanced cooling systems. These buildings have big HVAC systems. They also have high-voltage elevators and thick electrical lines. These run in shared utility shafts. Unshielded networking wires near heavy power grids can face electromagnetic interference (EMI). This interference can corrupt the data traveling through the network. Local regulatory separation standards for certified Cat6 cabling protect key data channels. They guard against strong industrial line noise.
Thermal Expansion Challenges in Vertical Service Shafts
The climate in Saudi Arabia presents severe challenges for building materials. In enclosed risers, ceiling plenums, and concrete pathways, temperatures can get very high. They often go well above comfortable levels. Standard low-grade PVC cable jackets soften and warp with heat. This changes the twist of the copper wires inside. As a result, it ruins the network’s performance. Professional projects require premium Low Smoke Zero Halogen (LSZH) rated jackets. These jackets keep their shape in extreme heat and won’t release harmful gases during emergencies.
Zero-Downtime Demands in Corporate Operations
Enterprises operating within Makkah’s commercial sector serve thousands of users simultaneously. These systems handle global hospitality bookings, large retail transactions, and real-time communications. They can’t afford unexpected outages or delays. Even a few minutes of network downtime caused by packet loss can lead to significant financial losses. Building a network on a robust, premium copper foundation is the most dependable way to ensure your office runs continuously without unexpected service interruptions.
Because of these demanding environmental and operational realities, Shan Network Company employs highly trained engineering teams who thoroughly inspect every project site to design customized, climate-resilient containment paths tailored to your building’s layout.
Critical Infrastructure Parameters: Physical Media Performance Comparison
When tech officers look at long-term network options, they need to compare various physical media. They should focus on verified performance indicators. Here’s a clear breakdown of performance levels from various wiring profiles:
Category 6 Certified (Cat6) Copper Cabling Infrastructure
Transmission Speed: Provides a steady 1 Gbps data rate over the full 100-meter channel. It can reach 10 Gbps for distances up to 55 meters.
Signaling Bandwidth: Operates reliably at a frequency level of 250 MHz.
Interference Resistance: High performance rating. An internal physical spline separator reduces near-end crosstalk.
Primary Target Use Case:
Standard enterprise desktop connections
Local office workstation nodes
Premium IP intercom systems
Category 5e Standard (Cat5e) Network Cabling
Transmission Speed: Supports up to 1 Gbps but is susceptible to environmental noise over long distances.
Signaling Bandwidth: Restrained to a maximum operational level of 100 MHz.
Interference Resistance: It has a low performance rating. It lacks internal barriers, which makes it very prone to packet drops in crowded trays.
Primary Target Use Case:
Non-critical background voice lines
Peripheral equipment setups
Legacy analog devices
Category 6 Augmented (Cat6a STP) Corporate Copper Cabling
**Transmission Speed:** Ensures a steady 10 Gbps data rate over the full 100-meter channel.
Signaling Bandwidth: Operates at a high spectrum level of 500 MHz.
Interference Resistance: This rating shows the highest performance. The inner aluminum shield keeps data channels safe from outside electrical noise.
Primary Target Use Case:
Core multi-floor vertical backbones
Heavy data server fields
High-performance corporate workstation nodes
Single-Mode Optical Fiber Link Assemblies
Transmission Speed: Easily scales past 40 Gbps up to 100+ Gbps over vast multi-kilometer physical distances.
Signaling Bandwidth: Virtually unlimited laser-driven light transmission pathways.
Interference Resistance:Full immunity. It transmits light waves, so it isn’t affected by electrical grids.
**Primary Target Use Case:** High-speed links connect remote commercial areas or key nodes across campuses.
Essential Deployment Material and Tooling Inventory Requirements
To build a certified Cat6 network, you need special parts. These parts are for procurement and field engineering. They help meet global standards. Below is the complete infrastructure checklist necessary for an enterprise-level implementation:
Primary Horizontal Cabling Assets:
Category 6 UTP or F/UTP
23 AWG solid copper wiring
Fire-safe Low Smoke Zero Halogen (LSZH) outer jacket
Central Distribution Interfaces:
24-Port or 48-Port
1U high-density patch panels.
Made from heavy steel for secure, long-lasting rack installation.
Modular Endpoints: High-performance Cat6 RJ45 keystone jacks have gold-plated contacts. This helps keep the signal clear.
Interconnect Cable Equipment: Slim Cat6 patch cords are factory-tested. They come in 1-meter, 3-meter, and 5-meter lengths for better rack organization.
Physical Routing Containment: Use heavy-duty galvanized steel wire-mesh cable trays. Pair them with high-impact PVC conduits. This keeps high-altitude runs safe.
Management Fasteners: Flame-retardant industrial hook-and-loop (Velcro) strap rolls. They prevent structural crushing during organization.
Testing Instruments: Fluke DSX-5000 or DSX-8000 CableAnalyzer. These tools meet strict industry standards. They verify signal performance and create reports.
**Precision Stripping Hardware:** Universal twisted-pair cable strippers have adjustable blade depths. They strip outer jackets. This keeps the internal copper safe from damage.
Grounding Architecture Components: Solid copper grounding wires connect directly to heavy copper busbars. This setup safely drains static charges in shielded runs.
Asset Identification Materials: Use thermal-transfer label printers. Pair them with self-laminating vinyl tape. This helps clearly mark all field nodes.
Avoidable Installation Flaws that Can Ruin Your Cat6 Enterprise Investment
Cat6 has a solid copper core and a strong internal spline separator. This makes it stiffer and heavier than regular legacy cables. This means it requires specialized, precise handling during installation. Inexperienced technicians can make mistakes that hurt the performance of costly networks:
Kinking the Cable and Violating the Minimum Bend Radius
Cat6 cables are built with a specific structure. Bending them around tight corners or cramming them into small wall boxes at sharp 90-degree angles can damage the cable. Tight bends compromise the internal insulation and deform the precise twist of the copper pairs. Industry standards dictate that Cat6 must maintain a bend radius of at least 4 times the outer diameter of the cable. Violating this rule creates high signal reflection and return loss, which slows the network down.
Untwisting Pairs Excessively at Termination Points
A common mistake by uncertified workers is stripping the outer cable jacket too far. They also often untwist the copper pairs too much when connecting them to jacks. The precise twist of the copper wires is what protects the signal from internal crosstalk. If the pairs twist more than 13 mm (0.5 inches) at the end, the line will fail certification tests. This will cause occasional packet dropouts.
Crushing Cables with Tight Zip-Ties and Excessive Bundling
Using cheap plastic zip-ties and pulling them too tight can easily damage a high-speed network. Tight plastic ties crush the internal structure of the cable, causing the wire pairs to press against each other. This physical damage results in severe near-end crosstalk (NEXT). Experienced pros use soft, adjustable hook-and-loop (Velcro) straps. These straps keep cables organized and avoid damaging pressure on the wires.
Strict Deployment Standards Maintained by Shan Network Company Field Engineers
When you hire a certified professional team, your project isn’t handled with guesswork or cutting corners. Every step of the installation follows globally recognized guidelines and detailed blueprints:
Phase 1: Precision Pathway Audits and Engineering Calculations
Before pulling a single cable, design specialists review your building’s architectural blueprints. They map out cable trays, service risers, and fire barriers to ensure the data lines run at a safe distance from high-voltage electrical lines.
Phase 2: Heavy-Duty Containment Setup and Low-Stress Installation
To safeguard your investment, installation teams create a strong pathway. They use steel wire-mesh trays, vertical risers, and durable PVC conduits. The data cables are pulled gently through these pathways. This prevents stretching the copper cores.
Phase 3: High-Precision Component Termination and Organization
Technicians utilize systematic termination practices, ensuring minimal jacket stripping and pair untwisting. Each wire is punched down with calibrated tools onto patch panels. This keeps the management arms in the server cabinet well organized.
Phase 4: Comprehensive Fluke Certification Testing
Once everything is connected, every single line drop is tested using an advanced Fluke cable analyzer. These tests check important performance metrics. They look at propagation delay. They also check wiremap configuration. Lastly, they test near-end cross-talk. The client gets an official report for each line.
Phase 5: Industrial Labeling and Project Handover
Every patch panel port, wall outlet faceplate, and cable end has clear, durable labels that are thermal-printed. Once the project is done, the engineering team provides full CAD layout maps and cable schedules. This makes future maintenance easier.
Proven Strategies for Building Future-Proof Corporate Networks
To make sure your corporate network works well for the next 15 to 20 years, follow these key best practices in your design plan:
Implement a Standardized Star Topology Design
Don’t let your contractors use multi-point splices. Avoid manual cable splits. Skip messy daisy-chain connections. Every individual data drop must run directly back to a central regional distribution rack (IDF) or the main server room (MDF). This organized, centralized method makes things easier. Maintenance, troubleshooting, and network changes are safer now.
Plan for a Minimum of 25% Growth Capacity
Always design your network pathways with future expansion in mind. Your horizontal cable trays need open space. Your server racks should have blank patch panels. Furthermore,your data closets need room to grow. This way, you won’t need to break walls or install new conduits later when you hire more staff or add equipment.
Isolate Important Security Systems with Managed VLAN Structures
Use managed switches to set up separate Virtual Local Area Networks (VLANs). This way, your office computers, guest Wi-Fi, and security equipment won’t all share the same crowded network. Isolating high-traffic systems, like IP security cameras, is important. It also helps to separate access control systems. This way, we can avoid bottlenecks. This way, your core business data stays secure.
Upgrade your corporate office with a professional, high-speed network. If you need to transition your systems, the expert team at Shan Network Company can help. They offer clean, certified low-voltage solutions designed just for you.
FAQs
Q1: Is Cat6 installation much more expensive than older wiring systems?
The initial cost for a Cat6 network installation is a bit higher than for Cat5e. This is because Cat6 uses better materials, like a thicker 23 AWG copper and an internal spline separator. It also requires certified labor to execute correctly. It offers full, stable Gigabit performance, preventing network bottlenecks. So, it’s a more cost-effective long-term investment.
Q2: Will our existing legacy hardware and switches work with a new Cat6 cable plant?
Yes, Cat6 copper cabling is fully backward compatible. It will work perfectly with your existing legacy routers, IP office phones, older switches, and desktop computers. When you upgrade your network hardware, the Cat6 wiring will keep up with higher performance. You won’t need to replace it.
Q3: Why is a Fluke certification report necessary for commercial installations in Makkah?
A Fluke certification report proves your contractor followed strict industry standards. It shows they installed and terminated the wiring correctly. These reports are generated by specialized testers that check cables for hidden faults. They can find issues like structural kinking, wiremap errors, and excessive near-end crosstalk. Cheap, basic wire testers can’t find these problems. This leads to slow networks.
Q4: Should commercial enterprises choose Shielded (STP) or Unshielded (UTP) Cat6 cables?
For typical office setups without heavy machines nearby, Unshielded (UTP) Cat6 cabling works well and is very flexible. If your data paths run near heavy high-voltage wires, elevator shafts, or big HVAC grids in Makkah’s high-rises, use a shielded (F/UTP) version. This helps block external noise.
Q5: Does a certified Cat6 network support modern Power over Ethernet (PoE) devices?
Yes, it does. Certified Cat6 cables use high-quality 23 AWG solid copper conductors. These conductors are great for modern Power over Ethernet standards. They support Type 1 PoE, Type 2 PoE+ (up to 30 Watts), and standard Type 3 configurations. This is a safe choice for standard IP security cameras, desktop VoIP systems, and office wireless access points.
